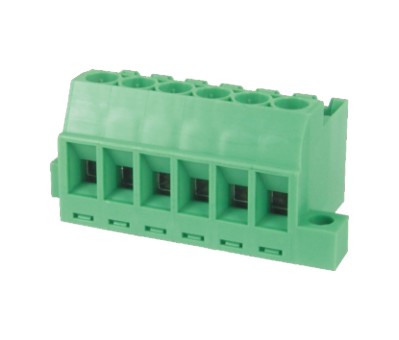

型號：V5 5.08-(Botton cover fixed type)
產品描述 | |
| 型號/Part No.: | V5 5.08-(Botton cover fixed type) |
| 間距/Pitch: | 5.08 |
| 位數/Poles: | 2P~24P |
| 料號/Number: | V5xx51500000G |
詳細信息請參閱pdf文件 | 網站圖紙僅供參考，具體需求請聯系業務。 |
產品介紹
電氣性能-Electrical
| 安規類別/Safety category: | cULus |
| 額定電壓/Voltage rating: | 300V |
| 額定電流/Current rating: | 12A |
| 適用線經/Wire range: | |
| 單芯線經（AWG）/Solid wire(AWG): | 12~30 |
| 多芯線經（AWG）/Stranded wire(AWG): | 12~30 |
| 最大鎖緊扭力/Torque: | 4.4 Lb-In |
| 螺絲規格/Screw: | M3 |
| 剝線長度/Wire strip length: | 6~7mm |
| 耐電壓值（1分鐘）/Withstanding Voltage: | 1.6KV |
| 安全認證/Safety Approval: |  |
| 操作溫度/Operating temperature: | -40℃ to +115℃ |
| 焊錫溫度/Soldering temperature: |
產品料號編碼原則-How to order
|
|
|
- Solid Block
02 2contacts
03 3contacts
… …
24 24 contacts
(pitch:5.08)
12 12 contacts
(pitch:10.16) - 5 5.08/.20"
6 10.16/.40" - 0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp - 0 Black
5 Green
6 Blue
8 Grey - 0 W/o flange
(Botton cover fixed type) - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper Alloy
H RoHS compliant
(lead<1000ppm)
In copper Alloy
